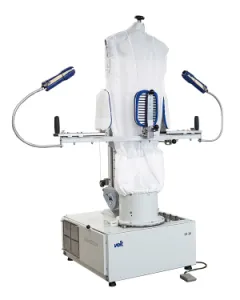

The all-rounder on 0.5 m²

With the new model UF 30, you win the multiplicity of finishing for your company.

Your benefits:

• Multipurpose: T-Shirts, polos, blouses, dresses, skirts, blousons, jackets, sport jackets, coats and much more

• Efficient: Finishing process from 10 seconds depending on garment and application

• User friendly: Adjustable bust height for ergonomical loading and unloading

• Good finishing of 60-250 pieces/h possible (depending on fabric type)

Maximum finish on minimum space!
Made in Germany!

Easy to operate

• 360° rotatable bust enables easy loading and best view of the garment

• Optional front and back pressure clamps in different length facilitate the finishing of garments with button tape

• Optional sleeve clamps ensure an optimised sleeve finish

Garment attachment bust

• Continuously adjustable shoulder width from 32-52 mm for all common sizes

• Easy and quick adjustment of bust height (from 1.51 m to 1.71 m) depending on length of garment

• Universal cover adjustable in width (in 3 ways possible)

Control unit

• Quick and easy adjustment of finishing parameters (steam, steam/air, drying time and air quantity)

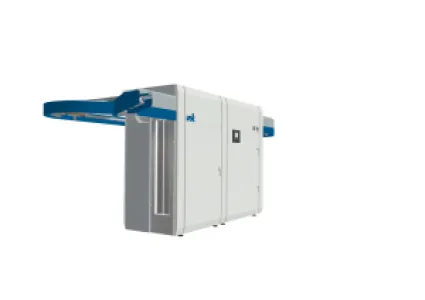

Our big little one

We have adapted our proven tunnel finisher technology to your company size!
With the new CF 20 compact finisher, you can take the next step towards automated finishing of your garments in smaller quantities.

Your advantages:

• Perfect finish result due to longer exposure time on the textile in a closed atmosphere

• Easy integration into existing processes for efficient workflows and into existing logistics systems

• Time saving through automatic loading and unloading and the automated process creates free capacities

• Space-saving due to compact size

• Flow reduction device in the drying chamber (option): The removeable flow reduction device saves even more energy as it shortens the drying time and increases the quality of thin items such as shirts.

• Steam unit: Even steaming for consistent and effective finish results

• Air Unit: Consistent, energy-efficient drying and smoothing

• Touch Screen: Centralised control through the user-friendly operating unit

• Maintenance and Service: For the CF 20 Compact Finisher, VEIT offers online support as an optional service. Your benefit: short reaction times in the event of malfunctioning or production standstills. Processes can be addressed directly at any time.

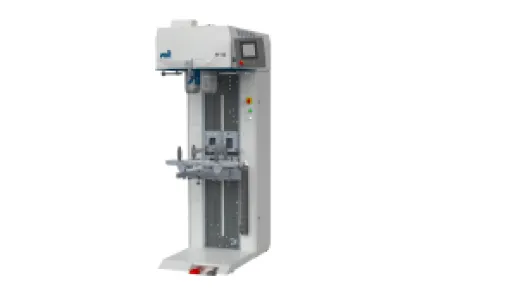

The outstanding performer with industry 4.0 connection

Cutting edge control technology for a perfect finishing result and process data acquisition for quality assurance.

Your benefits:

• VEIT Connectivity: Industry 4.0 connection enables the exchange of process data with manufacturing and ERP systems

• Intuitive touch screen: All program parameters can be viewed at a glance or changed in a moment

• Stretch Control: Sensitive adjustment for waist size and leg length

New! Optional measuring device for waist size and leg length.

Waistband tensioning device

• Precise adjustment of waistband tensioning force is stored within the finish program

• Extension of size spectrum through 2-dimensional waistband tensioning

Control panel

• Modern control technology

• New, intuitive operating concept

• Touch screen

• Finish programs can be imported via barcode or RFID scanner

Measuring device (optional)

• Measurement of inseam and waist dimensions during finishing process

• Efficient quality control:
  Fast detection of production deviations
  Data collection for quality assurance purposes

• Quality assurance through complete data acquisition

Maximum energy-saving – Astounding performance

The development of the new SF 27 Shirt Finisher was carried out with the involvement of fluidic engineers and specialists in the field of emission optimization. With the new model, VEIT has succeeded in further improving both the quality of the finished shirt and the functionality and ergonomics of the Shirt Finisher. Emission values such as energy consumption, noise and heat generation have been significantly reduced.

Unique benefits:

• High quality finish without touch-up

• 3 dimensional adjustable sleeve tensioners for the perfect result (Premium)

• Heat/energy recovery gives additional cost savings and faster payback (option)

• Moisture control for shortest drying times (option)

• Minimal heat and noise emissions provide a pleasant working environment

• Small insertion dimension, fits through any standard door

• Standby mode to save energy when the machine is not in use (option)

• Unique toothed belt drive for size retention even with stretch materials

Up to 40/80* perfect shirts per hour with only 20 kg/h steam consumption

*40 shirts (10% moisture) or 80 shirts (dry)

Hem clamp unit

• The hem clamp unit and the sidevent clamps are particularly permeable to air for fast drying of the side seams and crease-free fixation of the shirt hem.

Energy efficiency

• Optimised heat recovery through new extraction concept

• Optimised air and steam flow for maximum steam savings

• Fast and energy-efficient drying of the button-facing due to optimised airflow. As a result no heated front clamp is nessary.

Technical highlights

• Optimised tensioning system

• Same footprint with or without heat recovery system

• Reduced noise

• Industry 4.0 standard – enables monitoring of current production

User-friendliness

• Simple process flow

• Short training period for new employees

• Optimised ergonomics

Now also available with electrical heating!

SF 27e – electrically heated

VEIT has succeeded in developing the SF 27 into an electrically heated shirt finisher. The new SF 27e has almost the same performance as the steam-heated finisher. Compressed air, electricity and the SF 27e is up and running – it couldn’t be easier!

Flexible bust

Bust SL – perimeter 780-940 mm.

Shoulder width is adjustable from 43 to 54 cm.

The hem diameter is 90–170 cm.

The bust is also available with the plus 12 cm option, which facilitates the finishing of longer items such as gowns (only in conjunction with SF 27 Basic).

For highest demands for shirts and outerwear

FM 10 / 14

• Ideal for all shirt fabrics (FM 10) and outer fabrics (FM 10/14)

• Feeding belt 1400 mm (55.12 inch), for long parts

• Seperate feeding and transport belts, “cool feeding”

• Special insulation, little heat radiation

• Upper and lower heating individually controlled, with temperature limiters (1000 mm – 39.37 inch long)

• Seperate heating zones selectable, TOP (shirt), BOTTOM (outerwear)

• Special speed-heat up function, for fast heating of the machine

• Optional air and compression cooling

• Short (800 mm – 31.50 inch) or long (1400 mm – 55.12 inch) cooling belt

• Failure diagnostic system

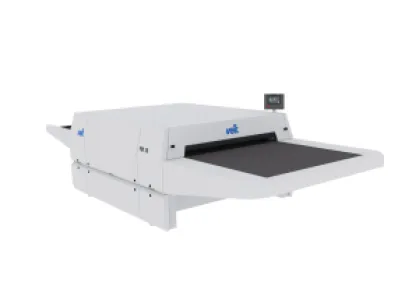

The most productive solution for outerwear

FM 14L / 16

Benefits as for FM 1000/1400, plus:

• Ideally suited for coats, winter fabrics and block fusing

• Extended heating zone, increased productivity (length 1400 mm – 55.12 inch)

• Three heating zones, more gentle heating

• For large-scale production or centralised fusing

• Ideal for combination with feeding systems (FE-L, ET)

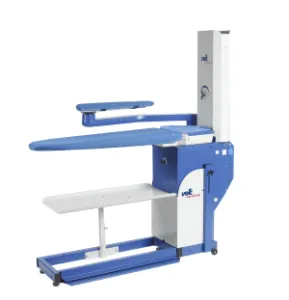

The new Varioline ironing table series

The new Varioline ironing table series excels with its outstanding suction or suctions and blowing power at a low noise level. The automatic switch-over from suction or blowing on the ironing surface to the swivel arm works mechanically.
The adjustment of suction and blowing power is done mechanically by flap as well. The comfortable height adjustment is supported by a gas spring. Its wide range of adjustment (830-990mm) allows perfect individual adjustment to the operator.
Available as suction only or suction and blowing version.
For your individual needs we offer a wide variety of accessories from our building block system.

Advantages:

• The comfortable height adjustment supported by a gas spring with its impressive adjusting range (830-990mm / 32.7-39.0 inch) provides for an optimal adaption to the operator

• The flap box made of high quality plastic provides for outstanding power at a low noise level
