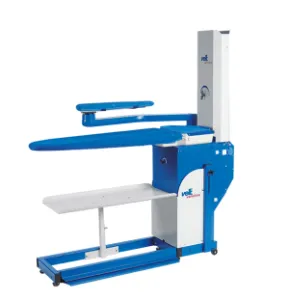

The new Varioline ironing table series

The new Varioline ironing table series excels with its outstanding suction or suctions and blowing power at a low noise level. The automatic switch-over from suction or blowing on the ironing surface to the swivel arm works mechanically.
The adjustment of suction and blowing power is done mechanically by flap as well. The comfortable height adjustment is supported by a gas spring. Its wide range of adjustment (830-990mm) allows perfect individual adjustment to the operator.
Available as suction only or suction and blowing version.
For your individual needs we offer a wide variety of accessories from our building block system.

Advantages:

• The comfortable height adjustment supported by a gas spring with its impressive adjusting range (830-990mm / 32.7-39.0 inch) provides for an optimal adaption to the operator

• The flap box made of high quality plastic provides for outstanding power at a low noise level

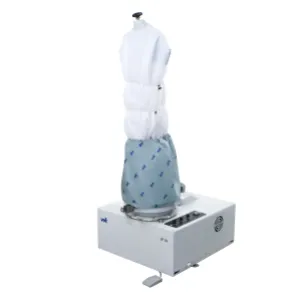

The all-rounder on 0.5 m²

With the new model UF 30, you win the multiplicity of finishing for your company.

Your benefits:

• Multipurpose: T-Shirts, polos, blouses, dresses, skirts, blousons, jackets, sport jackets, coats and much more

• Efficient: Finishing process from 10 seconds depending on garment and application

• User friendly: Adjustable bust height for ergonomical loading and unloading

• Good finishing of 60-250 pieces/h possible (depending on fabric type)

Maximum finish on minimum space!
Made in Germany!

Easy to operate

• 360° rotatable bust enables easy loading and best view of the garment

• Optional front and back pressure clamps in different length facilitate the finishing of garments with button tape

• Optional sleeve clamps ensure an optimised sleeve finish

Garment attachment bust

• Continuously adjustable shoulder width from 32-52 mm for all common sizes

• Easy and quick adjustment of bust height (from 1.51 m to 1.71 m) depending on length of garment

• Universal cover adjustable in width (in 3 ways possible)

Control unit

• Quick and easy adjustment of finishing parameters (steam, steam/air, drying time and air quantity)

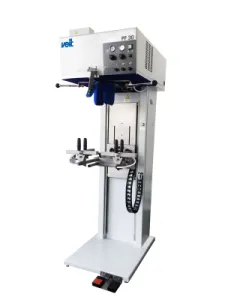

The basic model brings simplicity to trouser fnishing

Version with lateral tensioner for all kinds of fabric qualities with the reliable ZERO-STRETCH-Technology.

Your benefits:

• ZERO-STRETCH: Standard, for finishing of sensitive stretch fabrics

• STRETCH Control: Sensitive adjustment to reach the required leg length

• BODY Waistband Tensioning System: Waistband tensioning according to the shape of the human body

Up to 120 trousers in one hour!

Easy to operate

• Size scale to reach the required waistband width

• Stepless adjustment of loading height, incl. shorts

• Easy and fast adjustment of the finishing parameters

• Steam re-heater ensures best steam quality

Hem clamp system

• Variable positioning of hem clamp system

• Quick change from hem outside tensioning to hem inside tensioning

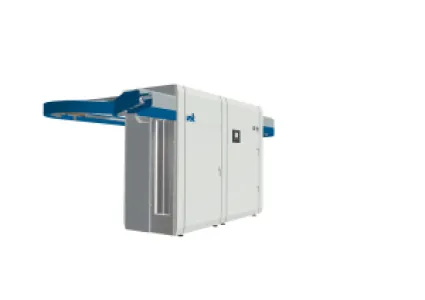

Our big little one

We have adapted our proven tunnel finisher technology to your company size!
With the new CF 20 compact finisher, you can take the next step towards automated finishing of your garments in smaller quantities.

Your advantages:

• Perfect finish result due to longer exposure time on the textile in a closed atmosphere

• Easy integration into existing processes for efficient workflows and into existing logistics systems

• Time saving through automatic loading and unloading and the automated process creates free capacities

• Space-saving due to compact size

• Flow reduction device in the drying chamber (option): The removeable flow reduction device saves even more energy as it shortens the drying time and increases the quality of thin items such as shirts.

• Steam unit: Even steaming for consistent and effective finish results

• Air Unit: Consistent, energy-efficient drying and smoothing

• Touch Screen: Centralised control through the user-friendly operating unit

• Maintenance and Service: For the CF 20 Compact Finisher, VEIT offers online support as an optional service. Your benefit: short reaction times in the event of malfunctioning or production standstills. Processes can be addressed directly at any time.

Our new compact finisher – Find out now!

For medium-sized businesses including:

• E-commerce retailers

• Laundries

• Clothing production

• Dry cleaners

• and many more

Transport system

Safe transport of the goods with proven VEIT hook system.

Sluice gate separation unit

Inside: Process separation between steam and air unit.
Outside: Energy efficiency through hermetic sealing.

Steam unit

Regulated steam moisture for consistent quality.

Air unit

High blower output for optimum finish of the fabric.

Control

User-friendly due to intuitive operating concept.

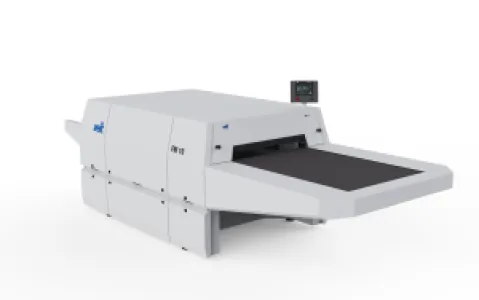

For highest demands for shirts and outerwear

FM 10 / 14

• Ideal for all shirt fabrics (FM 10) and outer fabrics (FM 10/14)

• Feeding belt 1400 mm (55.12 inch), for long parts

• Seperate feeding and transport belts, “cool feeding”

• Special insulation, little heat radiation

• Upper and lower heating individually controlled, with temperature limiters (1000 mm – 39.37 inch long)

• Seperate heating zones selectable, TOP (shirt), BOTTOM (outerwear)

• Special speed-heat up function, for fast heating of the machine

• Optional air and compression cooling

• Short (800 mm – 31.50 inch) or long (1400 mm – 55.12 inch) cooling belt

• Failure diagnostic system

Advantages:

• Consistent fusing results due to consistent pressure over the entire operating width

• Optimal fusing thanks to exact temperature control directly at the belt

• Optimal adjustment of pressure system (soft, medium) and heating sequence (top, bottom) to the materials to be processed

• Perfectly designed service concept allows easy and regular cleaning of machine

• Lowest possible energy consumption

• Consistent fusing quality due to optimized cleaning of the belts both on the inner and the outer side. Consequently, major reduction in soiling of roller and fusing material

• Reduced wear and tear of belt through contact-free belt control

• Visibility and accessibility: Improved access to stripper due to reduced machine width in the area of the cooling belt – Optimised viewing window for better visibility of the goods

• Functionality: A Removable FE for uncomplicated installation in confined spaces – Start-stop function of the input belt in case of deviation from the set fusing parameters

• Ergonomics: Weight savings on side panels for easier maintenance – Reduced basic machine height – Easy access to power supply – Reduced ambient temperature due to separate and cool input belt

• Control: Capacitive touch display for easier operation – User-optimised user interface – Diagnostic and remote service capability – Rotatable and tiltable display
