For highest demands for shirts and outerwear

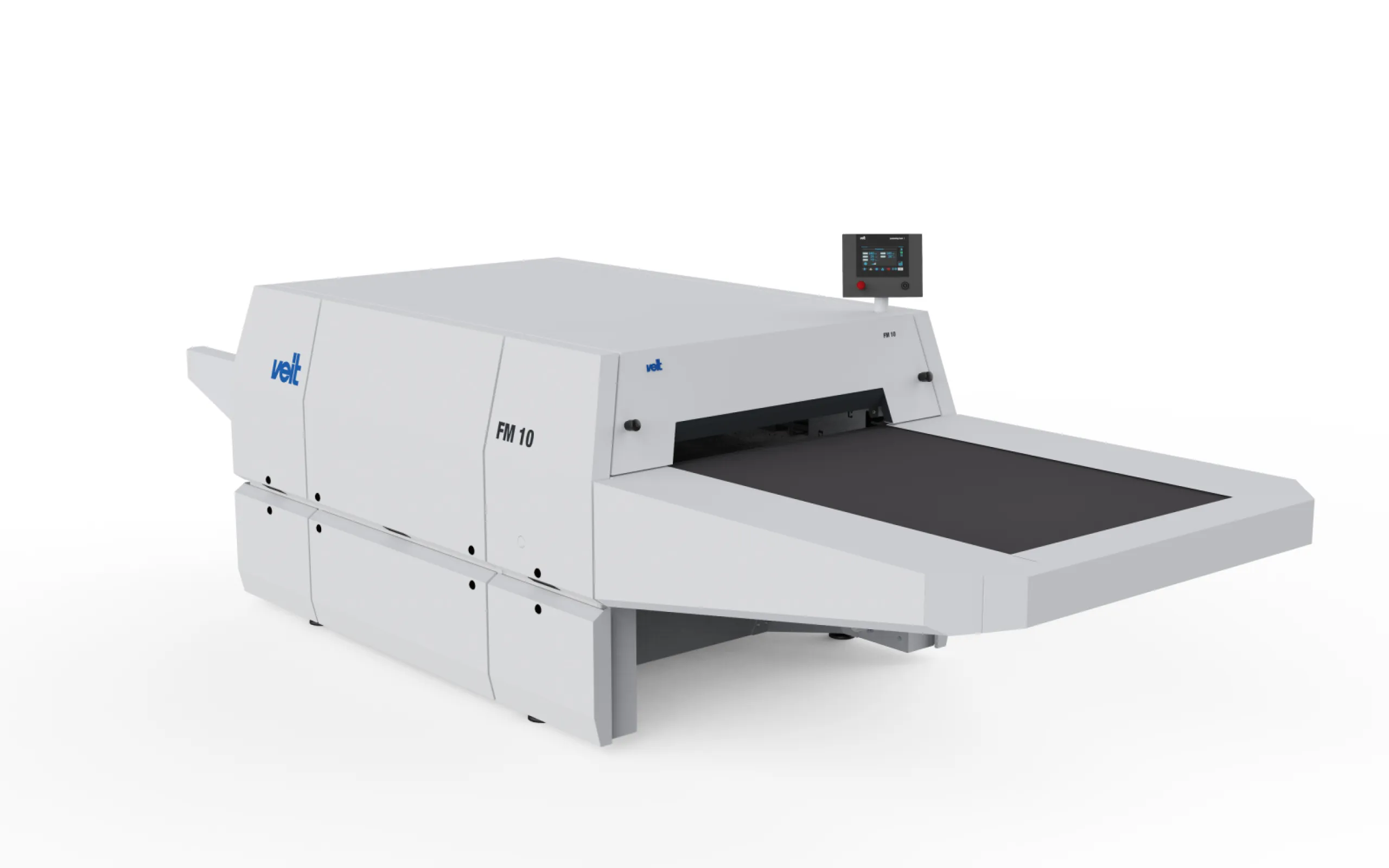

FM 10 / 14

• Ideal for all shirt fabrics (FM 10) and outer fabrics (FM 10/14)

• Feeding belt 1400 mm (55.12 inch), for long parts

• Seperate feeding and transport belts, “cool feeding”

• Special insulation, little heat radiation

• Upper and lower heating individually controlled, with temperature limiters (1000 mm – 39.37 inch long)

• Seperate heating zones selectable, TOP (shirt), BOTTOM (outerwear)

• Special speed-heat up function, for fast heating of the machine

• Optional air and compression cooling

• Short (800 mm – 31.50 inch) or long (1400 mm – 55.12 inch) cooling belt

• Failure diagnostic system

Advantages:

• Consistent fusing results due to consistent pressure over the entire operating width

• Optimal fusing thanks to exact temperature control directly at the belt

• Optimal adjustment of pressure system (soft, medium) and heating sequence (top, bottom) to the materials to be processed

• Perfectly designed service concept allows easy and regular cleaning of machine

• Lowest possible energy consumption

• Consistent fusing quality due to optimized cleaning of the belts both on the inner and the outer side. Consequently, major reduction in soiling of roller and fusing material

• Reduced wear and tear of belt through contact-free belt control

• Visibility and accessibility: Improved access to stripper due to reduced machine width in the area of the cooling belt – Optimised viewing window for better visibility of the goods

• Functionality: A Removable FE for uncomplicated installation in confined spaces – Start-stop function of the input belt in case of deviation from the set fusing parameters

• Ergonomics: Weight savings on side panels for easier maintenance – Reduced basic machine height – Easy access to power supply – Reduced ambient temperature due to separate and cool input belt

• Control: Capacitive touch display for easier operation – User-optimised user interface – Diagnostic and remote service capability – Rotatable and tiltable display
